How To Stain PVC Pipe

Step 1 Gather The Materials

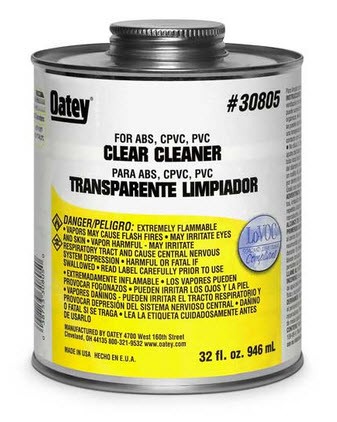

• “Clear Cleaner” is a product used to prepare PVC pipe and pipe fittings for gluing. Chemically, it is very similar to “Purple Primer,” but without the added purple dye.

• “Solvent dye” or “fuel dye” is an oil-soluble chemical intended for colorizing oily products like gasoline. I found one-ounce bottles of Rekhaoil Red HF, Rekhaoil Yellow HF, and Rehkaoil Blue HF from Narad Marketing on eBay by searching “petroleum dye.” Note that these dyes are very strong; one ounce goes a long way.
• Rekhaoil Red HF is a trade name for Solvent Red 164. Rekhaoil Yellow HF is a trade name for Solvent Yellow 126. Rekhaoil Blue is a trade name for Solvent Blue 98.
• If the color you want happens to be purple, of course, you might as well just buy “Purple Primer” and use it as a stain instead of mixing your own.

Step 2 Mix The Dye With The Cleaner

• Work in a well-ventilated work space and wear nitrile gloves and goggles at all times when handling the solvent or the dye.

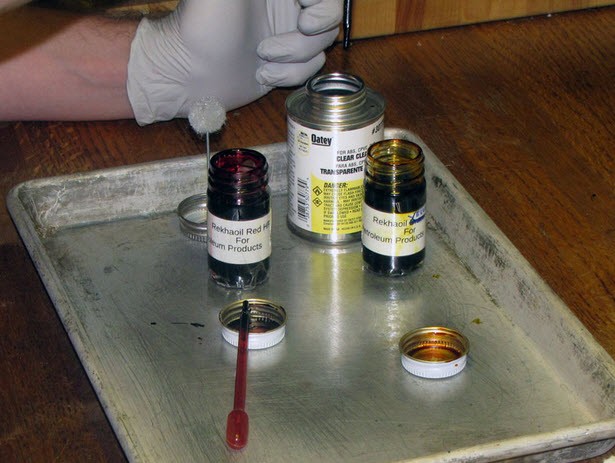

• Using your volumetric pipette, draw up the required volume of each dye and transfer it to the container of Clear Cleaner. Be careful not to cross-contaminate the dyes.
• Here are the volumes of red, yellow, and blue dyes I added to 4 oz cans of Clear Cleaner to get the colors shown in the photo:
• Red = 1 mL red, Orange = 1/2 mL red + 1/2 mL yellow, Yellow = 1 mL yellow, Green = 1/2 mL yellow + 1/2 mL blue, Blue = 1 mL blue, Indigo = 2/3 mL blue + 1/3 mL red, Violet = 1/2 mL blue + 1/2 mL red
• Brown = 1/3 mL red + 1/3 mL yellow + 1/3 mL blue
• The “black” is actually very strong blue, with fully 1/2 oz (15 mL) of blue dye added to 4 oz Clear Cleaner.

Shake the cans well to mix.

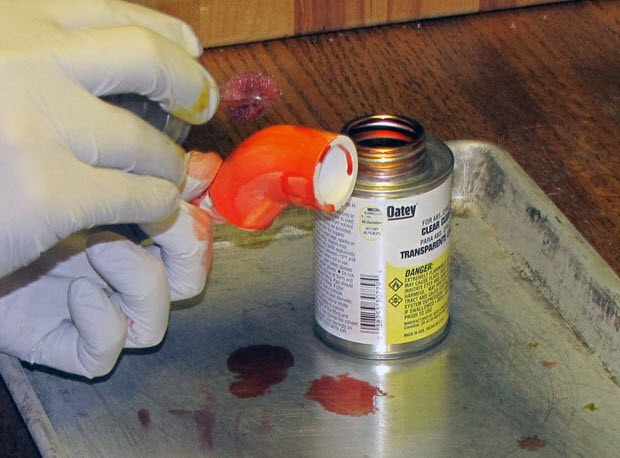

Step 3 Apply The Stain

You probably want to rig up some kind of wire holder for the fitting instead of holding it.

Now you just have to let the pieces dry.
